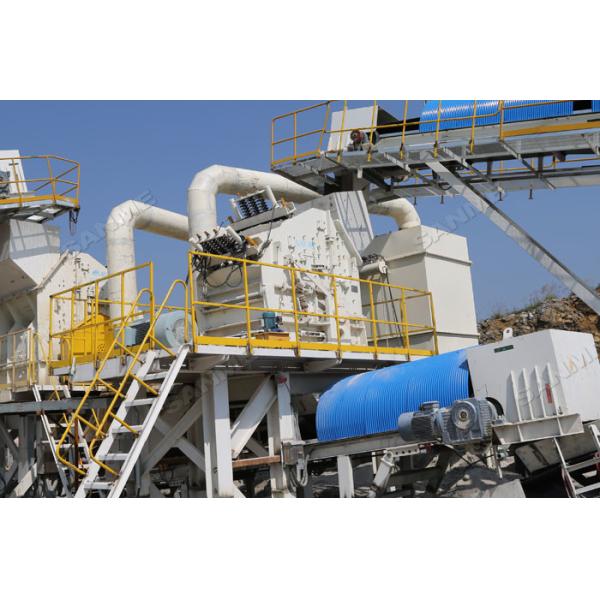

High Output Mining Crushing Machine Easy Operation Long Working Life
product introduction:
HC Series Impact Crushers are built on advanced technology with a combination of domestic applications. The overall structure is simple, practical and reasonable.
Product Usage of HC Series Impact Crushers:
HC Series Impact Crushers can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical industries, etc.
Features and technology advantages of HC Series Impact Crushers:
1. High-quality plates and wear parts to reduce abrade and improve the production efficiency of various conditions; advanced processing technology is the basis of equipment performance.
2. Strong product commonality can reduce cost. Two-cavity impact crusher can becomes three-cavity machine by adding grinding racks, and no need to change other parts.
3. Heavy type rotor, finite element endurance analysis, optimized design, reasonable structure and enhancing moment of inertia lead to bigger crushing ratio and better abrasion resistance.
4. Static and dynamic balancing test for the welding rotor should be done before assembling. To make sure the rotor has a smoothly running and long working life.
5. Main shaft is finished by quality forging, adopts keyless design and world advanced cover tightening connection to ensure the reliable working and make the maintenance easier.
6. Unique locking device for hammers makes the tightening moment of force more safe and bigger. And the replacement of hammers can be more simple and convenient.
7. Standard design for liners increase the interchangeability, decrease the repertory and variety of liners.
8. Simple but practical locking device lock the shell 1 and shell 2 together. This device has a easy operation and saves locking time.
9. Unique hydraulic device design is convenient for opening the fame racks to replace wear parts and adjust the discharge size.
10. Simple structure for impact racks and grinding racks. Easy operation, long working life, convenient maintenance and low cost
Technical Data of HC Series Impact Crushers:
| Model | Max Feed Size(mm) | Throughput(t/h) | Motor Power(kw) | Overall Dimension(L×W×H)(mm)
( the biggest size ) | Weight(Motor not included)(t) |
| HC128 | 300 | 40-70 | 37-55 | 3115*1600*2932 | 11.8 |
| HC139 | 500 | 50-80 | 55-75 | 3060*2048*2935 | 14.6 |
| HC239 | 500 | 100-180 | 110-132 | 3095*2048*2970 | 14.7 |
| HC255 | 500 | 100-290 | 132-160 | 3095*2398*2970 | 17.4 |
| HC359Ⅱ | 700 | 180-350 | 200-250 | 3415*2666*3127 | 22.2 |
| HC459 | 750 | 220-450 | 250-315 | 3717*3020*3301 | 27 |
| HC579 | 800 | 250-550 | 400-500 | 3552*3547*3231 | 36.2 |
| HC679 | 1000 | 400-700 | 560-630 | 4019*4064*3652 | 53.2 |
| HC779 | 1300 | 500-850 | 630-800 | 4785*4338*4849 | 79 |
| HC798 | 1300 | 750-1100 | 800-1250 | 4825*4838*4849 | 90.8 |
| HC898 | 1500 | 1000-1500 | 1000-1600 | 5382*5445*5454 | 112.8 |
| HC8118 | 1600 | 1400-1900 | 1400-2000 | 5382*5945*5454 | 135.5 |
| HC8138 | 1600 | 1400-2500 | 1600-2100 | 5348*6527*5454 | 158.8 |
Technical Data of HSI Series Impact Crushers:
| Model | Max Feed Size(mm) | Throughput(t/h) | Motor Power(kw) | Overall Dimension(L×W×H)(mm)
( the biggest size ) | Weight(Motor not included)(t) |
| HSI379 | 350 | 240-460 | 250-280 | 3271*3527*2730 | 23.23 |
| HSI498 | 400 | 275-560 | 280-355 | 3755*3522*2833 | 27.2 |
| HSI5118 | 450 | 375-825 | 500-710 | 3552*4547*2746 | 36.2 |
| HSI6118 | 500 | 600-900 | 800-900 | 3733*5272*3306 | 56.2 |
| HSI7138 | 500 | 875-1490 | 900-1250 | 4785*5838*4120 | 78 |
